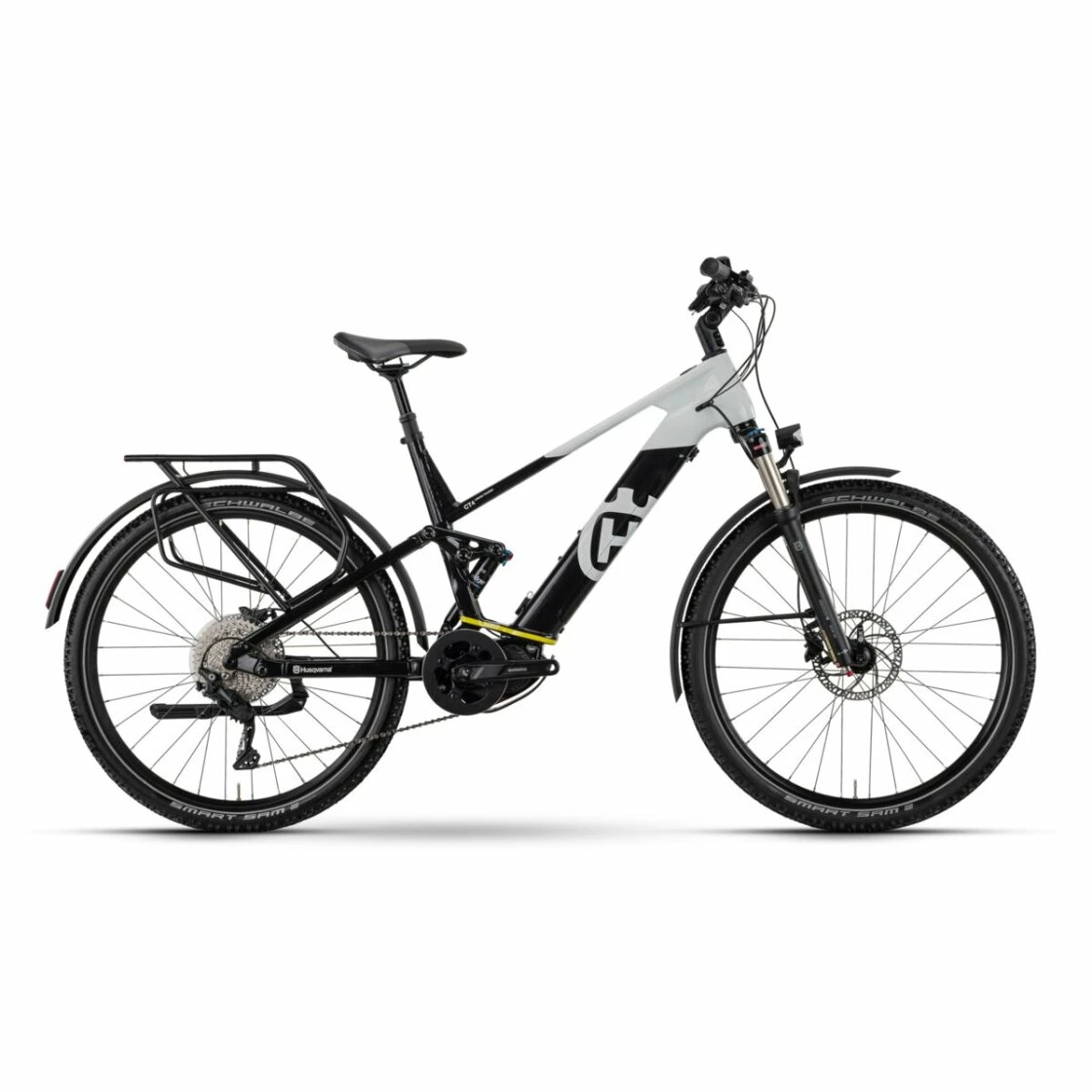

Husqvarna Cross Tourer 4

Rahmen

27.5″, Alloy 6061, iFull Active 4-Link, integrated Battery, Boost

Gabel

SR SUNTOUR XCR34 Boost LOR, remote lockout, Air, 100 mm, tapered

Motor

Shimano EP8, DU-EP800, 250 W, 85 Nm

Akku

Core S1, 630 Wh, 36 V, 17,5 Ah

Ladegerät

Charger S, 4 A

Display

Shimano SC-E6100, LCD-Display, ANT, Bluetooth

Bremsen

Shimano BR-MT410, 2-Piston, Hydraulic disc brake

Bremsscheibe hinten

Shimano RT-EM300, 180 mm, Center Lock

Bremsscheibe vorne

Shimano SM-RT30, 180 mm, Center Lock

Bremshebel

Shimano BL-MT201, adjustable, 3-finger

Schaltwerk

Shimano Deore XT, RD-M5120, Shadow Plus, 10-S

Schalthebel

Shimano Deore, SL-M4100, Rapidfire Plus

Kette

KMC e10S

Kettenblatt

Husqvarna, Narrow Wide, 38 T

Kurbelarm

Shimano FC-EM600, Forged aluminium, Shimano EP24

Hinterrad

Rim: Ryde Disc26, eyeleted, Tubeless Ready
Hub:Husqvarna DA210F, Center Lock, 15×110 mm, Thru axles

Vorderrad

Rim: Ryde DisC26, eyeleted, Tubeless Ready
Hub:Husqvarna DA210F, Center Lock, 15×110 mm, Thru axles

Felgen

Ryde Disc30, eyeleted

Hinterradnabe

Husqvarna DA210R, Center Lock, 12×148 mm, Thru axles, HG

Vorderradnabe

Husqvarna DA210F, Center Lock, 15×110 mm, Thru axles

Reifen

Schwalbe Smart Sam, Active, Reflex, 54-584, 27.5×2.1

Griffe

Husqvarna MTB, Screw handles

Lenker

Husqvarna Ergo 31,8 mm, 700 mm, Sweep: 9 °, Rise: 12 mm

Sattel

Husqvarna Vivo, by Selle Royal

Sattelstütze

Husqvarna, 31,6 mm

Vorbau

Husqvarna 31.8, Ahead, adjustable

Steuersatz

Husqvarna ZS44/ZS56

Scheinwerfer

Herrmans MR4, 40 lx, 120 lm

Rücklicht

Supernova M99-TL2

Ständer

Ursus MOOI, Rear stand KSA40, adjustable

Gepäckträger

Husqvarna Tour, spring clamp, MIK, loaded up to 25 kg

Pedale

Husqvarna, Aluminium

Schutzbleche

Eurofender speed

zulässiges Gesamtgewicht

130 kg

Kettenführung

Direct Mount

Zahnkranz

Shimano CS-M4100, 11-42 T

Dämpfer

SR SUNTOUR EDGE LOR, Air, 185×50 mm, Trunnion
