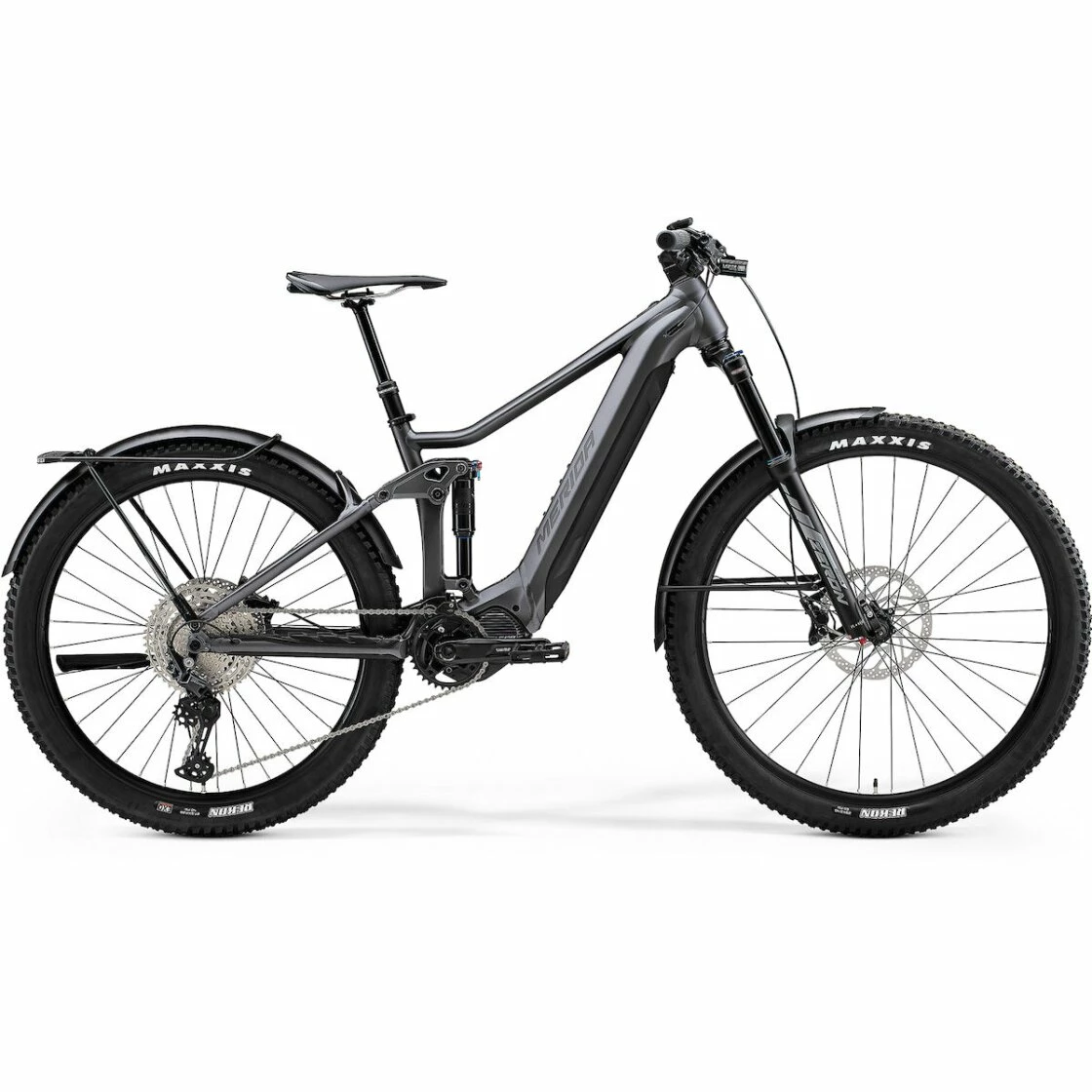

Merida EOne-Forty 675 EQ

Rahmen

eONE-FORTY LITE III, material: aluminium, 133mm suspension travel, 27.5×2.8″ max. wheelsize, 148x12mm axle standard, intube

Motor

Shimano EP8, 85Nm

Display

Shimano SC-E5003

Akku

750 WH

Ladegerät

Shimano EC-E8004, 4A charging current

Gabel

Suntour ZERON 35-Boost LOR, Air, 140mm suspension travel, Tapered, 51mm fork offset, 29×2.4″ max wheelsize

Dämpfer

SUNTOUR RS-EDGE-TR-LO-R8-M6, lockout

Bremse

Shimano M4100, 4 piston

Bremsscheibe

Vorne/Front: Shimano RT30, 203 mm
Hinten/Rear: Shimano RTEM300, 203 mm

Kurbelgarnitur

Shimano CRE70-B, 34 teeth, Shimano FCEM600

Gänge

1 x 11

Schalthebel

Vorne/Front: Shimano SL -MT500-IL
Hinten/Rear: Shimano Deore M5100 11

Schaltwerk

Shimano Deore RDM5100 11

Kassette

Shimano M5100, 11-51 teeth, 11 speed

Kette

HG601-11

Lenker

MERIDA EXPERT eTR, 780mm width, 20mm rise

Griffe

MERIDA EXPERT EC

Vorbau

MERIDA EXPERT eTRII, material: aluminium, 35mm diameter, 0° stem angle, Supernova mount

Steuersatz

MERIDA-8152

Sattel

MERIDA EXPERT CC

Sattelstütze

MERIDA COMP TR, 30.9mm diameter, 0mm setback, S 100mm travel seatpost – M/L 125mm travel seatpost – XL 150mm travel seatpost

Reifen

Vorne/Front: MAXXIS REKON, 29×2.4″, wire, DUAL
Hinten/Rear: MAXXIS REKON, 27.5×2.6″, wire, EXO

Nabe

Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock

Felgen

MERIDA COMP TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)

Tretlager

included

Pedale

VP VPE-537

Scheinwerfer

LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount

Rücklicht

Herrmans H-Cargo integrated in MERIDA MIK carrier

Gepäckträger

MERIDA MA006

Schutzblech

Fender:FA311-70A / 75E3 with SW803V-70 / 75, fender stay MA007, alloy rail

Ständer

Atranvelo ED-100-PC

Zubehör

MERIDA Multitool mit Saddlebox

Gewicht

24,88 (weighed with 29″ wheels and at frame size M, without pedals, incl. Lights)
