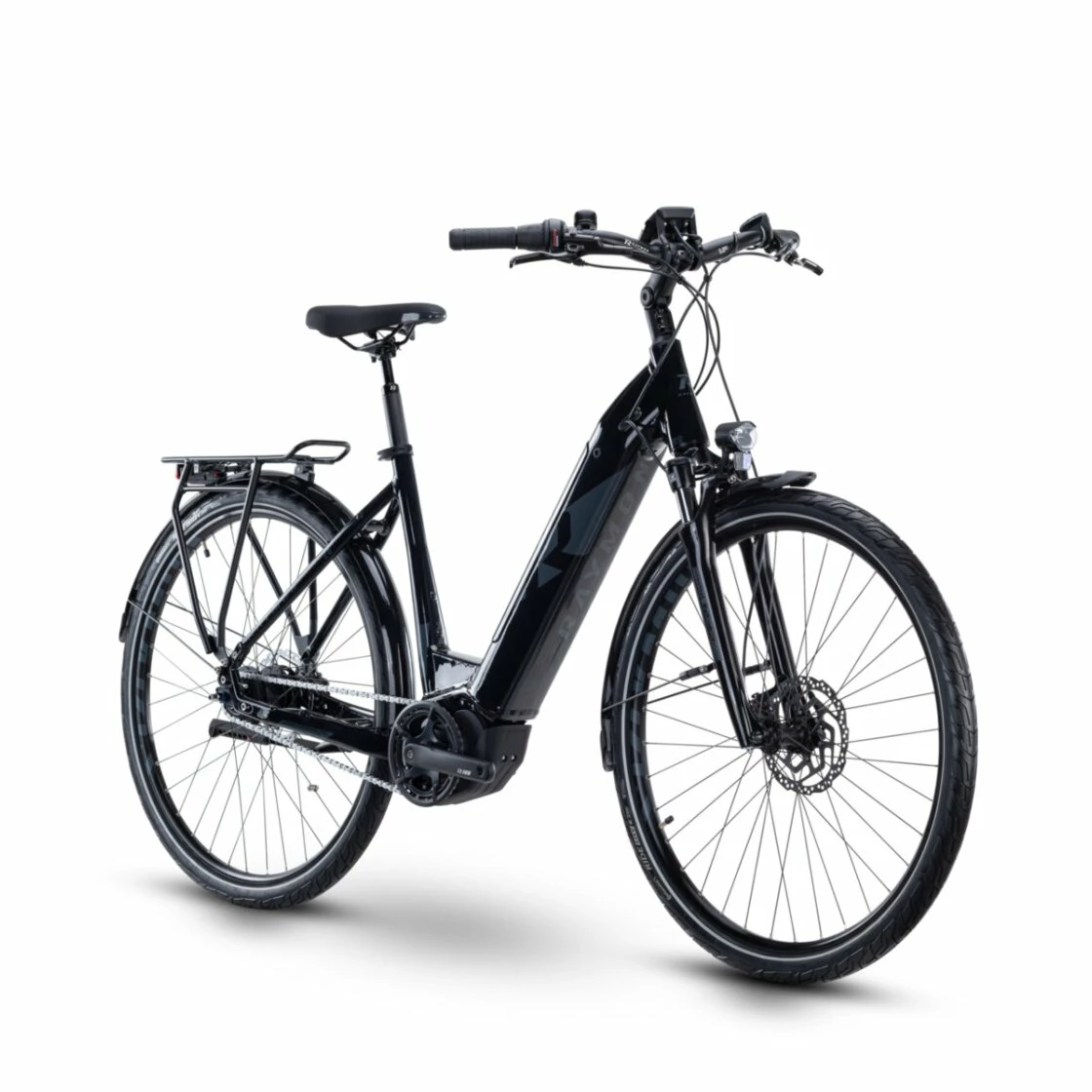

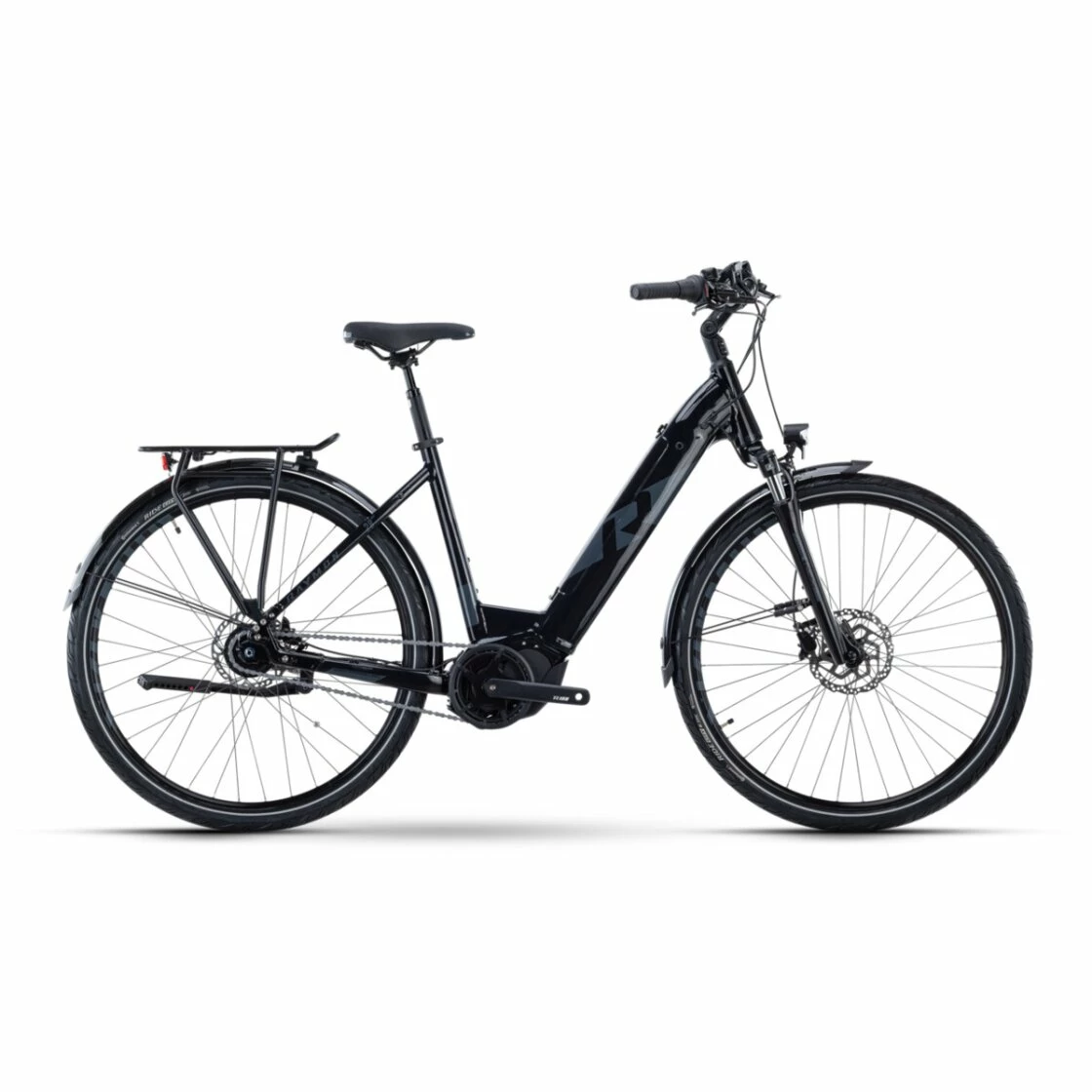

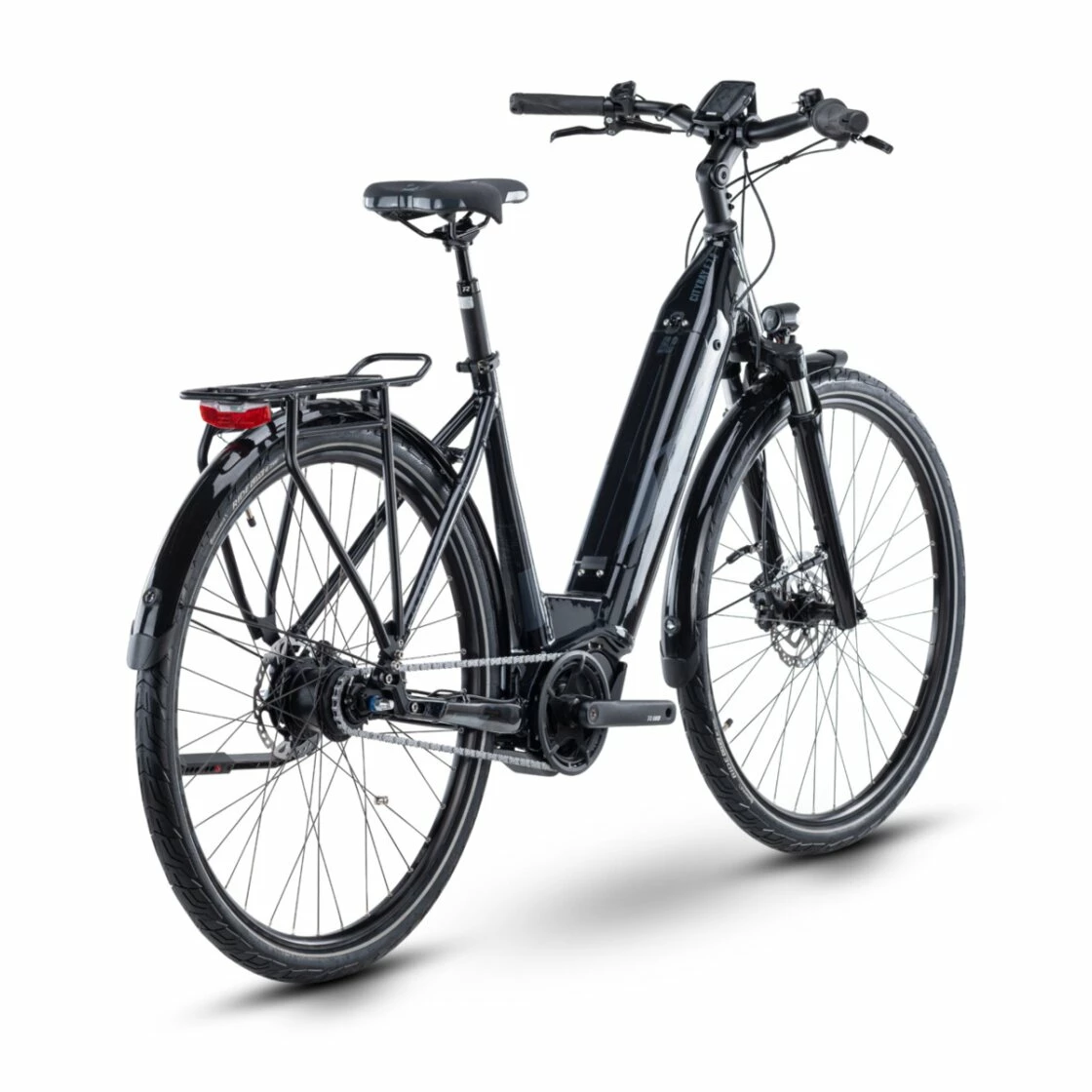

Raymon CityRay E 7.0

Rahmen

XS: 26″;, Alloy 6061, Integrated battery
S-L: 28″;, Alloy 6061, Integrated battery

Gabel

SR SUNTOUR NEX-E25, Coil, 50 mm

Motor

Yamaha PW-CE, 250 W, 50 Nm

Akku

Yamaha ML500, 500 Wh, 36 V

Ladegerät

Yamaha rapid charger, 4 A

Bedieneinheit

Yamaha C

Display

Yamaha Display C, LCD-Display, Bluetooth

Bremse hinten

Shimano BR-MT200, 2-piston, Hydraulic disc brake

Bremsscheibe hinten

Shimano SM-RTC60, 160 mm, 5-hole

Bremse vorne

Shimano BR-MT200, 2-piston, Hydraulic disc brake

Bremsscheibe vorne

Shimano SM-RT10, 180 mm, Center lock

Schaltung

Shimano Nexus, SG-C6001 8-S, 8-S

Schalthebel

Shimano Nexus, SL-C6000, Revoshift

Kette

KMC Z1

Kettenblatt

R Raymon, 38 T

Kurbelarm

Wheeltop, Aluminum forged, JIS

Zahnkranz

Shimano SM-Gear, 19

Hinterrad

Rim: Mach 1 630E, With eyelets
Hub: Shimano Nexus, SG-C6001, SG-C6001-8

Vorderrad

Rim: Mach 1 630E, With eyelets
Hub: Shimano TX505, Center lock, 9×100 mm

Felgen

Mach 1 630E, With eyelets

Hinterradnabe

Shimano Nexus, SG-C6001, SG-C6001-8

Vorderradnabe

Shimano TX505, Center lock, 9×100 mm

Reifen

XS: Continental Ride City, Reflex, 47-622, 26×1.75
S-L: Continental Ride City, Reflex, 47-622, 28×1.75

Griffe

R Raymon Ergo, Lock-on grips

Klemmschelle

, Quick release

Lenker

R Raymon Ergo 31.8 mm, 640 mm, Sweep: 35 °, Rise: 25 mm

Sattel

R Raymon Ergo

Sattelstütze

R Raymon, 31.6 mm, 300 mm

Vorbau

R Raymon 31.8, adjustable

Steuersatz

R Raymon ZS44/ZS56

Scheinwerfer

Herrmans MR4, 40 lx

Rücklicht

AXA Blueline E

Ständer

Ursus MOOI, rear kickstand KSA18, adjustable

Gepäckträger

R Raymon, MIK

Pedale

R Raymon, aluminum

Schutzbleche

Eurofender Tempo

Gewicht

26.6 kg

zul. Gesamtgewicht

130 kg
